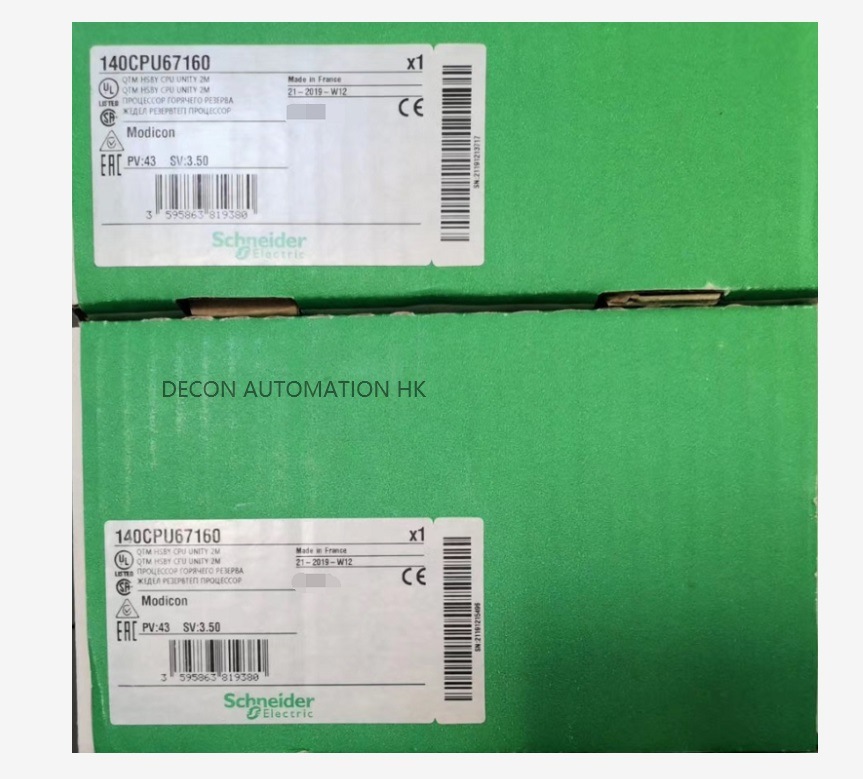

Schneider Electric Processor/Controller 140CPU67160 PLC CPU

Decon-automation (HK) Co., Ltd.



Product description :

Schneider Electric PLC CPU - 1984 (Analogue), 39744 (Discrete) Outputs, Modbus Plus Networking, ASCII, AS-Interface

Schneider 140CPU67160 Processor/Controller, Unity Hot Standby processor with multimode Ethernet - 1024 kB - 266 MHz.

Schneider Modicon Quantum CPU

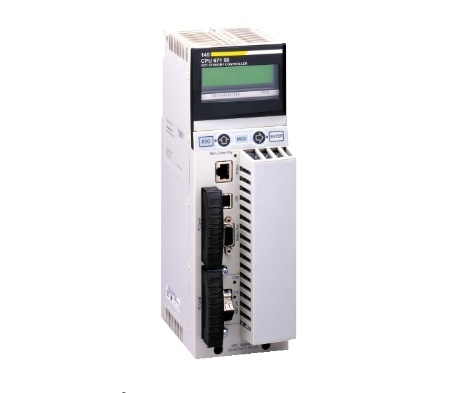

Product photo :












This Modicon Quantum CPU has been designed to manage the Hot Standby functionality for the programmable logic controllers within the Schneider Electric Quantum series. To protect the application programme from inadvertent changes during operation, it is stored in a battery backed internal RAM. The processor is easy to use and features an LCD display to access diagnostics, access certain configuration parameters and starting and stopping the CPU. The processor battery is easy to access and service as it is located on the front of the unit and can be changed whilst the CPU is in run mode. The Hot Standby system is compatible with Unity Pro™ XLS software, and provides the CPU with the high level of availability required by the critical process applications.

Features and Benefits
• Superior scan times and fast I/O acquisition
• Ability to handle interrupts, timed and I/O based
• Handling of Fast task™, and a Master task™

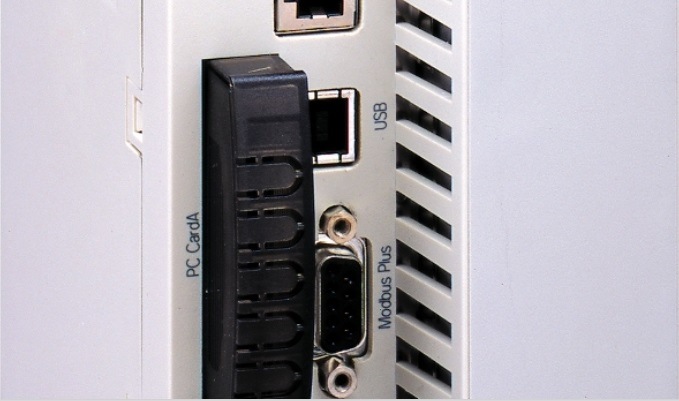

• Memory expansion through PCMCIA cards

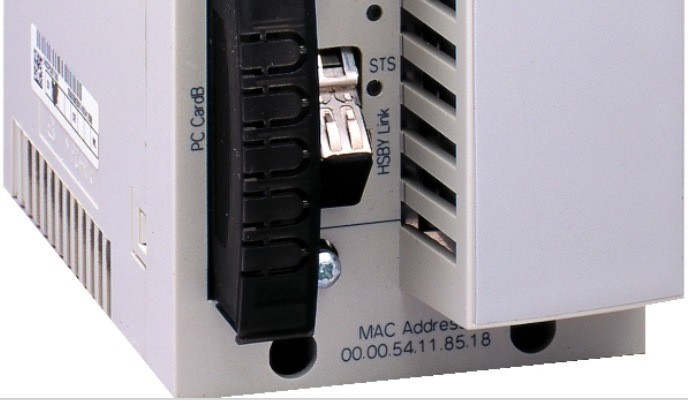

• Multiple integrated communication ports including 1 x Modbus, 1 x Modbus Plus, 1 x USB, 1 x Ethernet, 1 x 100 Mbps port (dedicated Hot Standby port)

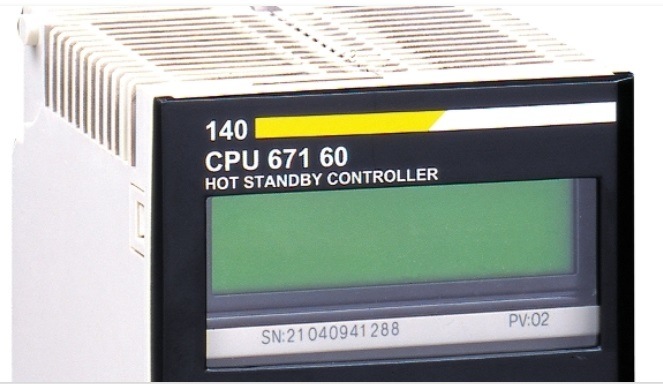

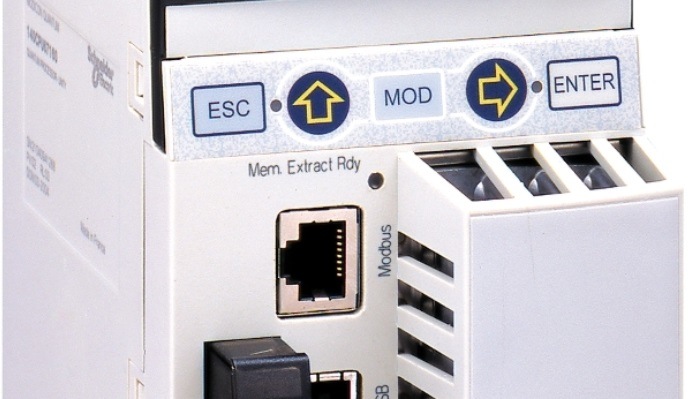

• Ease of diagnostics and maintenance via the LCD display block on the front panel
• Certified for use in safety applications up to and including SIL2




New Schneider Electric Altivar 312 Inverter/Motor Drive with 3 Phase

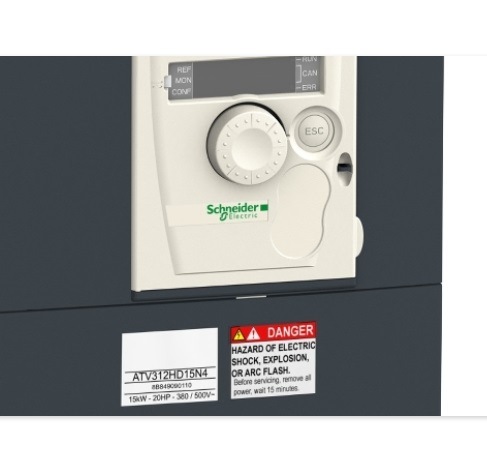

New Schneider Electric Altivar 312 Motor Drives AC DRIVE 20HP 480V 3PHASE Inverter ATV312HD15N4 AC Inverter

Variable speed drive ATV312 - 15kW - 32kVA - 492 W - 380..500 V - 3-phase supply

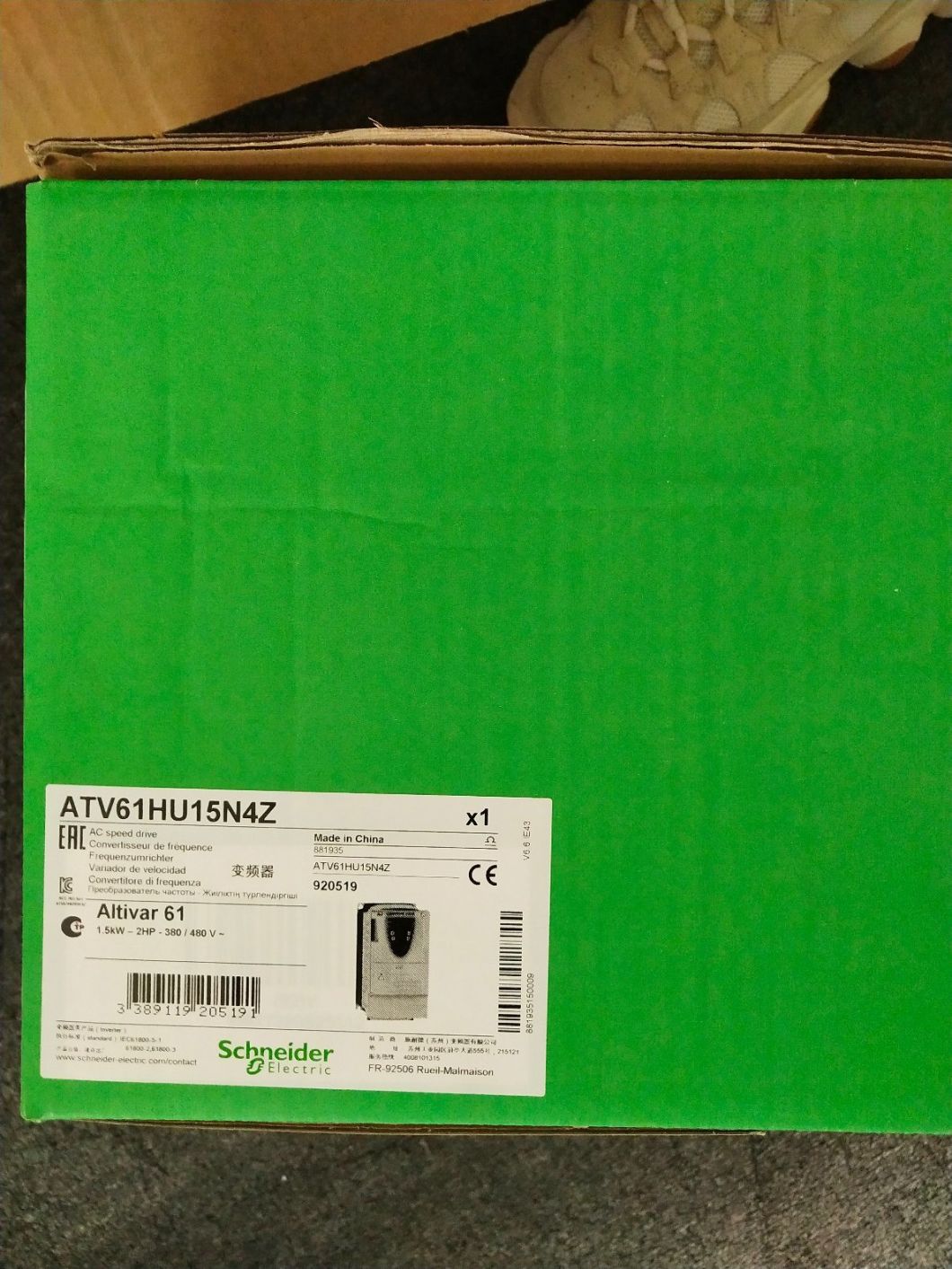

Altivar ATV61HU15N4Z Variable Speed drive inverter 1.5kW by Schneider Electric
